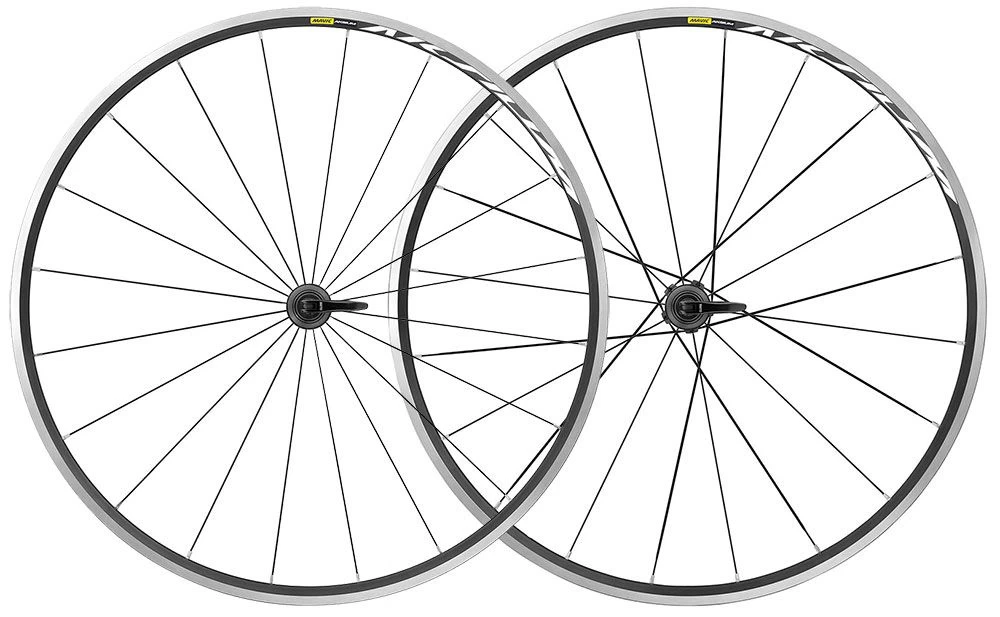

Mavic Aksium Shimano Wheelset Road Bike Wheel Sets | Bike-Discount

Designed with features and technologies that are typically reserved for premium race wheels from Mavic, Aksium delivers quality performance for everyday road riding.

Smooth, efficient ride quality: the Aksium from Mavic

Features include straight-pull spokes for added strength and stiffness, and lightweight rims for a lively ride quality. The rims are now wider, which allows for increased air volume and a better fit for larger diameter tires (up to 32mm).

The hubs are incredibly tough, delivering high mileage and long-lasting dependability. And the QRM bearings are the smoothest in the category. It all adds up to a wheelset that delivers the high-quality ride that Mavic is known for.

---

Features – Mavic Aksium Shimano

• 17mm rim accommodates larger tire section for improved comfort
• Straight-pull spokes are stronger than J-bend options
• High quality cartridge bearings
• Pinned joint and reinforced drilling rim design
• Consistent and stable spoke lacing

Product features

• Use: Road

• Model: Aksium
• Wheel size: 28″
• Rim type: Clincher
• Tubeless ready: No
• ETRTO: 622
• Brake type: Rim Brake
• Freehub system: FTS-L
• Bearings: sealed cartridge bearings
• Freehub body: Shimano 9-/10-/11-speed
• Rim inner width: 17mm
• Rim height: 21mm
• Valve hole: Presta / SV Ø 6.5mm
• Hub axle system:
  • Front: 9 x 100mm QR
  • Rear: 10 x 130mm QR
• Spoke type:
  • Front: straight pull, round
  • Rear: left: staight pull, round / right: straight pull, flat
• Spokes:
  • Front: 20 (radial)
  • Rear: 20 (left: radial / right: 2-cross)
• Recommended tyre sizes: 25mm to 32mm
• ASTM Catergory: 1 (road only)
• Recommended system weight max: 120kg (Rider + Bike + Equipment)

Material

• Rim: Aluminium
• Hub: Aluminum
• Freehub: Steel
• Spoke: Steel
• Nipples: Steel

Color

• black – White Standard

Weight (manufacturer information)

• Front: 845g
• Rear: 995g
• Wheelset: 1840g

---

Scope of delivery

• 1 x Mavic Aksium Shimano Wheelset
• 1 x Rim tape
• 1 x BR101 quick releases
• User guide

---

Technologies

QRM (Qualité de Roulements Mavic)
Mavic only uses high quality sealed cartridge bearings. On QRM wheels, they feature double sealing (2RS or LLU) together with tight C3 internal clearance.

FTS-L (Force Transfer System Light)
Reinforcement of key transmission components: the contact area between the pawl and the hub body is reinforced by 2 stainless steel inserts, which allows the use of a 100% aluminum hub body.
