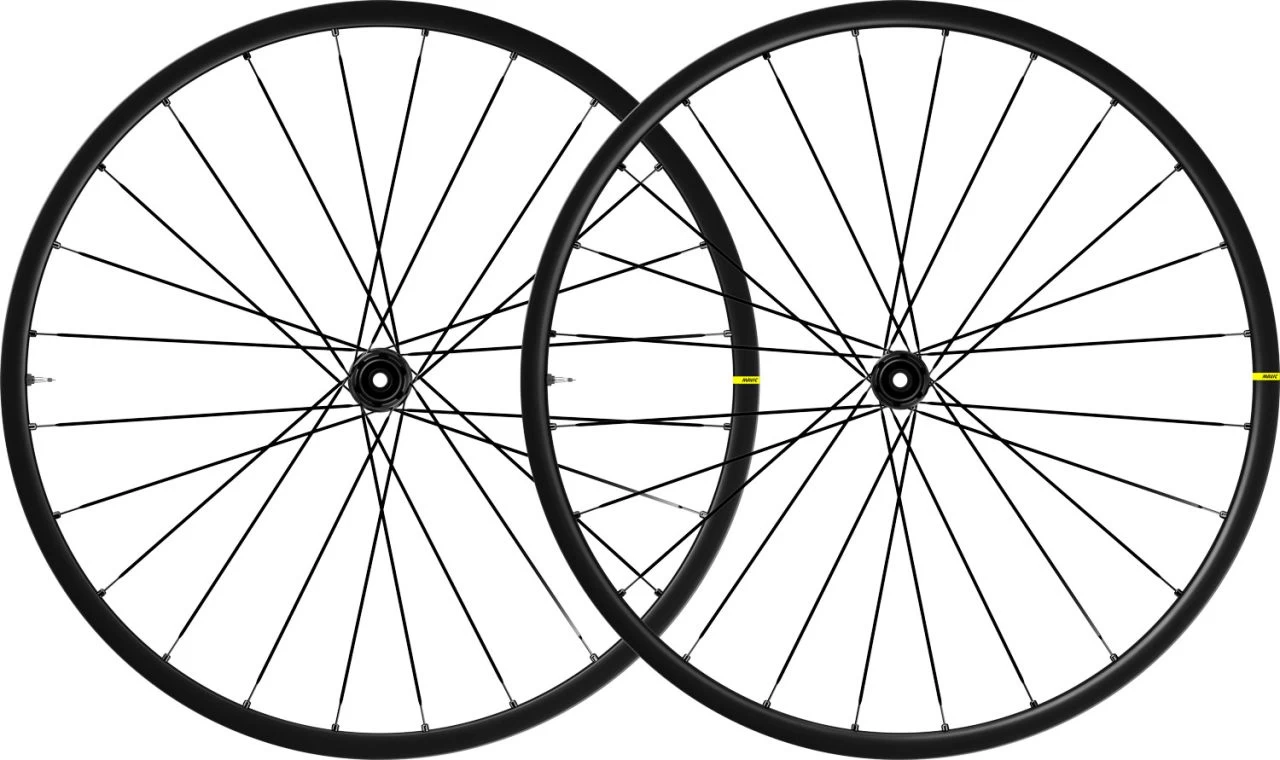

Mavic Allroad S Disc Sram XDR Wheelset Wheel Sets | Bike-Discount

Mavic’s Allroad line has no preferences when it comes to the surface: rough roads, pave, bad tarmac, forest tracks or gravel roads — the durable aluminum wheels don’t mind. They playfully combine speed and control. Optimized for large-volume tires with 22mm rim width, this tubeless wheel is made for your next Allroad adventure.

The lightweight aluminum rims are wide enough (22mm jaw width) and compatible with tubeless tires from 28 to 64mm wide for a smooth, efficient ride. Our UST system has been improved with a new rim bed shape that makes it easier than ever to mount and change tires. Fore technology attaches the spokes to the rim without drilling the outer rim bed, eliminating the need for rim tape. No hassle, no added weight. Our new Infinity hub model line optimizes lacing with highly controlled tension for maximum power transfer, and the Instant Drive 360 freewheel works in conjunction with our automatic bearing preload (QRM Auto) to provide fast traction, more stiffness and greater durability.
Matte painted hubs, invisibly welded rim joints and jet black spokes give this wheel a premium look that stands out from the crowd. It is compatible with center-lock brake discs and available with either Shimano HG or Sram XD road freewheel body.

---

Features – Mavic Allroad S Disc Center-Lock Sram XDR Wheelset 12×100 / 12×142

• 22mm wide UST rims for a smooth ride with a wide range of tubeless tires from 28 to 64mm
• UST Road Tubeless provides comfort and control on rough roads with lower tire pressure
• No tube means less friction, better efficiency and grip
• Automatic bearing preload (QRM Auto) requires no adjustment and ensures long-term durability
• Fore Technology eliminates rim tape and saves 30g per wheel
• 17mm axle and new hub design

Product features

• Use: Road, Gravel, Cyclocross

• Model: Allroad S
• Wheel size: 28″
• Rim type: Clincher (folding/wireless)
• Tubeless: ✔
• ETRTO: 622
• Bearing: Self-adjusting sealed industrial bearings (QRM Auto)
• Freewheel system: Instant Drive 360
• Freewheel: SRAM XDR
• Rim width inside: 22mm
• Rim height: 22mm
• Installation width:
  • Front: 12 x 100mm thru axle
  • Rear: 12 x 142mm thru axle
• Spoke type: straight pull, flat, double butted (patented)
• Spokes
  • Front: 24 crossed 2, contactless
  • Rear: 24 crossed 2, contactless
• Brake type: disc brake
• Brake system: Disc Center-Lock
• Recommended tires : 28 mm to 64 mm (1.1″ to 2.5″)
• Valve hole: Presta / SV Ø 6.5mm
• ASTM category: 2 – for use on roads and off-road with jumps up to 15 cm high
• Max. System weight: 120kg (rider + bike + equipment)

Material

• Rim: Maxtal aluminum
• Hub body: Aluminum
• Freewheel: Aluminum
• Spokes: Steel
• Spoke nipple: aluminum

Color

• black

Weight (manufacturer information)

• Front: 830g
• Rear: 935g
• Set: 1.765g

---

Scope of delivery

• 1 x Mavic Allroad S DCL Sram XDR Wheelset 12x100mm / 12x142mm
• 2 x Tubeless valve and accessories

---

Technology

Fore Technology
The Fore technology of Mavic is the latest achievement of the French tradition forge. It is the result of years of research and combines light weight and improved tubeless mounting with increased stiffness and ease of repair. Fore Technology is 10% lighter and stronger than conventional wheel designs. Fore Technology spokes fit directly into a cast-in metal insert, eliminating the need to drill the upper rim bridge. This eliminates the need for rim tape, allows for easy repair, and saves an additional 30g per rim.

Infinity hub
Mavic’s Infinity hub stands for optimal power transmission, durability and compatibility. Instant Drive 360 freewheel technology ensures fast gripping under load with high stiffness and durability, and features automatic bearing preload adjustment (QRM Auto) that is easy to maintain without special tools. Designed for compatibility and ease of use, the Infinity hub can be converted to all major freewheel options and axle dimensions.

UST Tubeless technology
Traction, Control and Lightweight. The UST concept improves traction, control and comfort – while reducing inertia and puncture risk. Mavic’s tubeless design reduces rolling resistance, making the wheel lighter and conjuring up a more comfortable ride on the road.

QRM (Qualité de Roulements Mavic)
Qualité de Roulements Mavic. Mavic uses only high quality sealed cartridge bearings. On QRM wheels, they are double sealed (2RS or LLU) and have a tight C3 internal clearance.
