Mavic Cosmic Elite UST Disc Centerlock Shimano Rear Wheel Road Bike Rear Wheel Disc | Bike-Discount

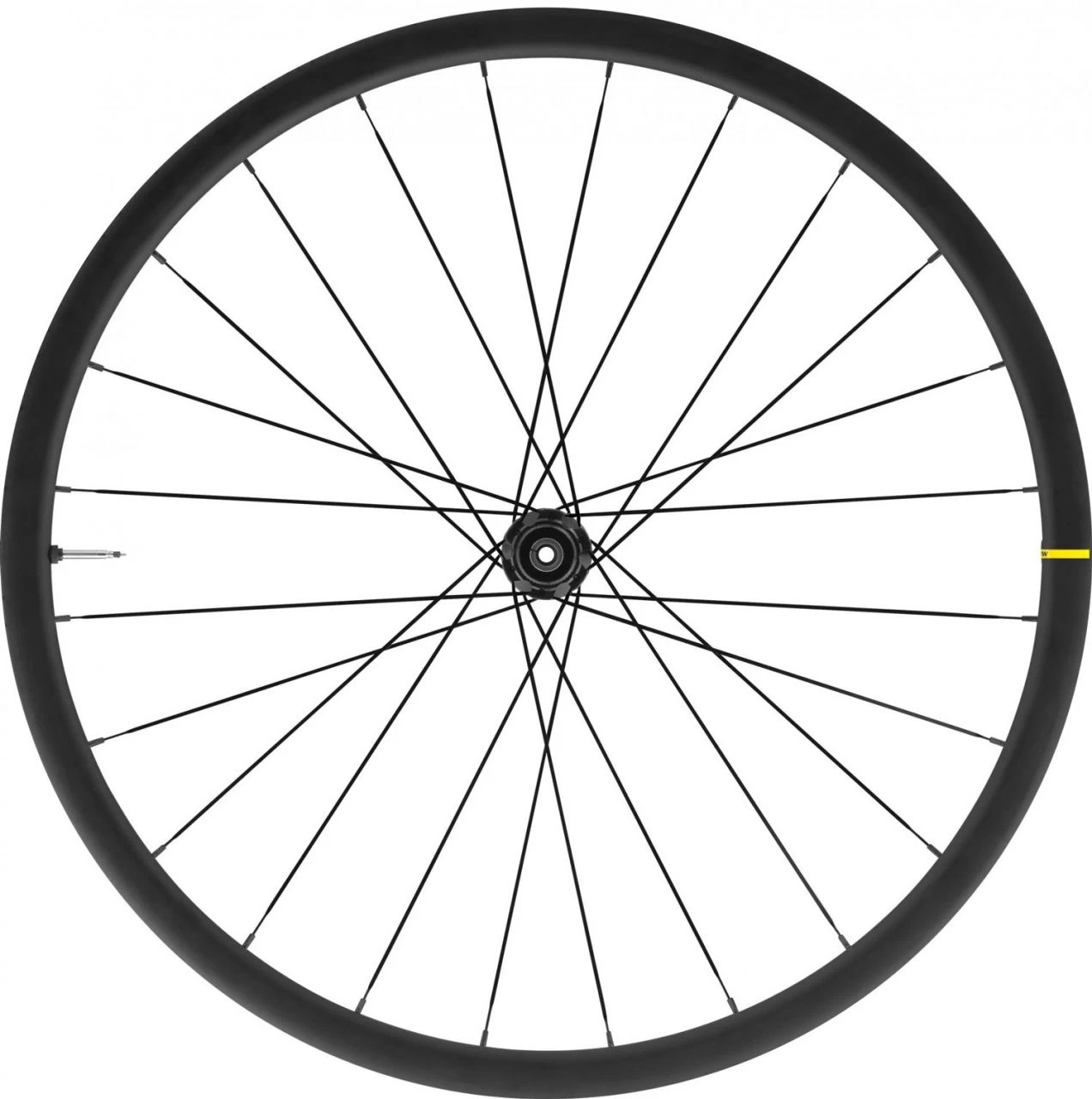

The Cosmic Elite UST Disc Centerlock rear wheel with Shimano HG freewheel for disc brake – is the perfect entry into the top performance of Mavic. The UST Road Tubeless system impresses with smoother ride and higher puncture protection, without sacrificing light-footed climbing characteristics and acceleration.

Smooth and efficient driving characteristics: the Cosmic Elite UST Disc CL from Mavic

The wheel is specially designed for use with disc brakes – for example, with straight steel aero spokes, which are far more tensile than the conventional curved spokes. In addition, the most robust hub technology with durable QRM bearing.
The drive and braking forces are efficiently transmitted by the Instant Drive 360 freewheel, which is at the same time light, supple, stiff and easy to maintain

---

Features – Mavic Cosmic Elite UST Disc rear wheel | Shimano HG | Centerlock

• UST Road Tubeless technology provides lower rolling resistance and more speed by eliminating friction between tire and tube
• UST Road Tubeless technology allows you to ride with lower tire pressure for smoother ride and lower risk of punctures
• 17mm (inside) wide rim combined with wider tires for a more comfortable ride
• Straight spokes: more stable than curved ones
• High quality industrial bearings
• Consistent and stable lacing
• Disc brake specific rim profile

Product features

• Use: Road

• Model: Cosmic Elite UST Disc CL
• Wheel size: 28″
• ETRTO: 622×17
• Rim type: Clincher (folding/wireless)
• Tubeless Ready: Yes
• Brake type: Disc brake (Centerlock)
• Freewheel system: Instant Drive 360
• Freewheel: Shimano 9-/10-/11-speed
• Bearings: Self-aligning sealed industrial bearings (QRM Auto)
• Rim width inside: 17mm
• Rim height: 30mm
• Mounting width: 12 x 142mm thru axle
• Spoke type: straight, aero profile
• Spokes: 24 (left: radial / right: 2-cross)
• Recommended tires: 25mm to 32mm
• Valve hole: Presta / SV Ø 6.5mm
• ASTM category: 2 – for use on roads and off-road with jumps up to a height of 15 cm
• Max. System weight: 120 kg (rider + bike + equipment)

Material

• Rim: aluminum
• Hub body: aluminum
• Freewheel: Aluminum
• Spokes: steel
• Spoke nipple: steel

Color

• black

Weight (manufacturer information)

• approx. 1015g

---

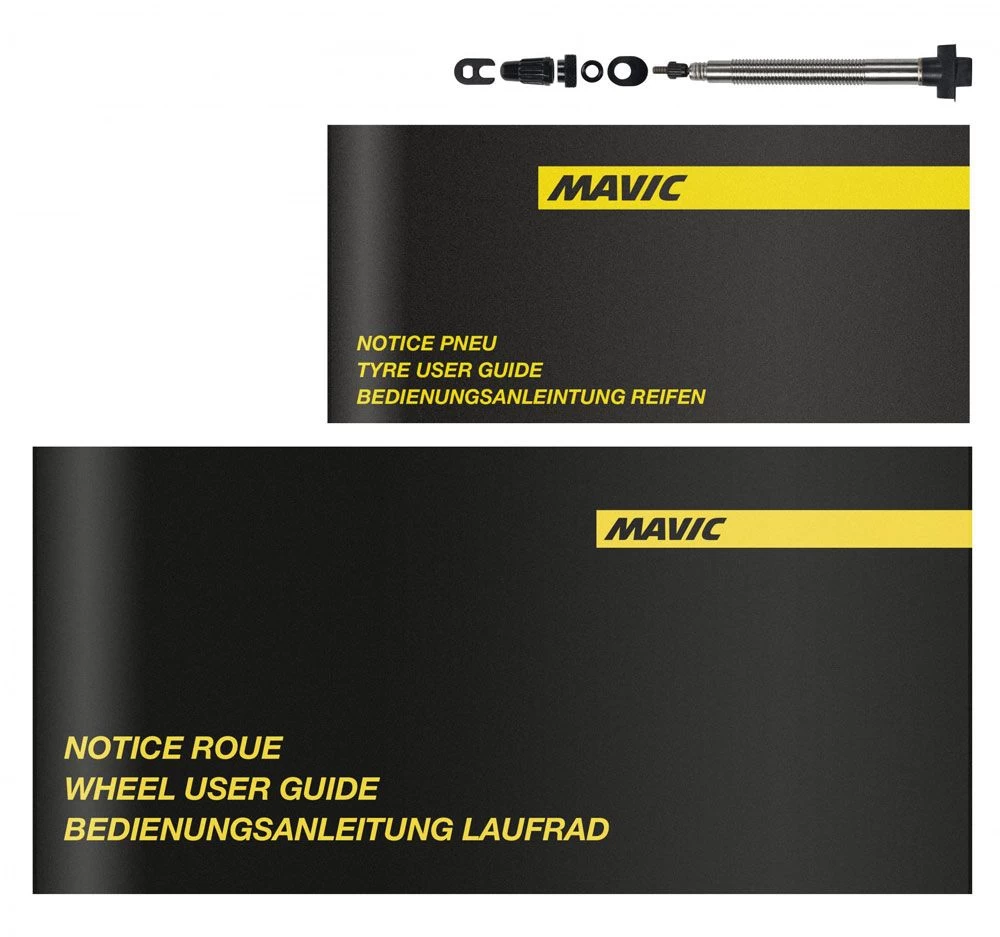

Scope of delivery

---

Technologies

UST Tubeless Ready
Traction, control and lightweight. The UST concept improves traction, control and comfort – while reducing inertia and puncture risk. Our “Tubeless Ready” construction results in a lighter tire for even better performance.

Instant Drive 360
The new Instant Drive 360 freewheel system is super-lightweight and with only 9 ° engagement angle ensures fast traction. A large non-contact rubber seal lowers friction. And a wide selection of stub axles ensures compatibility with many installation standards.

QRM (Qualité de Roulements Mavic)
Qualité de Roulements Mavic. Mavic uses only high-quality sealed cartridge bearings. On QRM wheels, they are double sealed (2RS or LLU) and have a tight C3 internal clearance.

SUP (Soudé Usiné Process)
More stable and smoother rim joint. The rim joint is welded and then milled over to create a smooth braking surface.
