Mavic Crossmax 27.5″ Boost Wheelset Wheel 27.5″ Boost Sets | Bike-Discount

Featuring Infinity hubs, ID360 freewheel and Maxtal welded rims, this modern XC wheel lives up to the legendary Mavic Crossmax name: strong, reliable, and tubeless ready.

Efficient, strong and reliable performance: with the Crossmax from Mavic

The name Crossmax has a long history in the world of XC riding and racing and this new wheelset lives up to its name with many of the same features and technologies as pro-level XC race wheels, but at a far more attainable price. One of the key factors is Mavic UST technology, which allows for easy setup of tubeless ready tires and gives you all the associated benefits including better traction and control, a smoother ride quality and a reduced risk of punctures. The rim is welded for added reliability and features a 25mm internal width with a hookless profile.

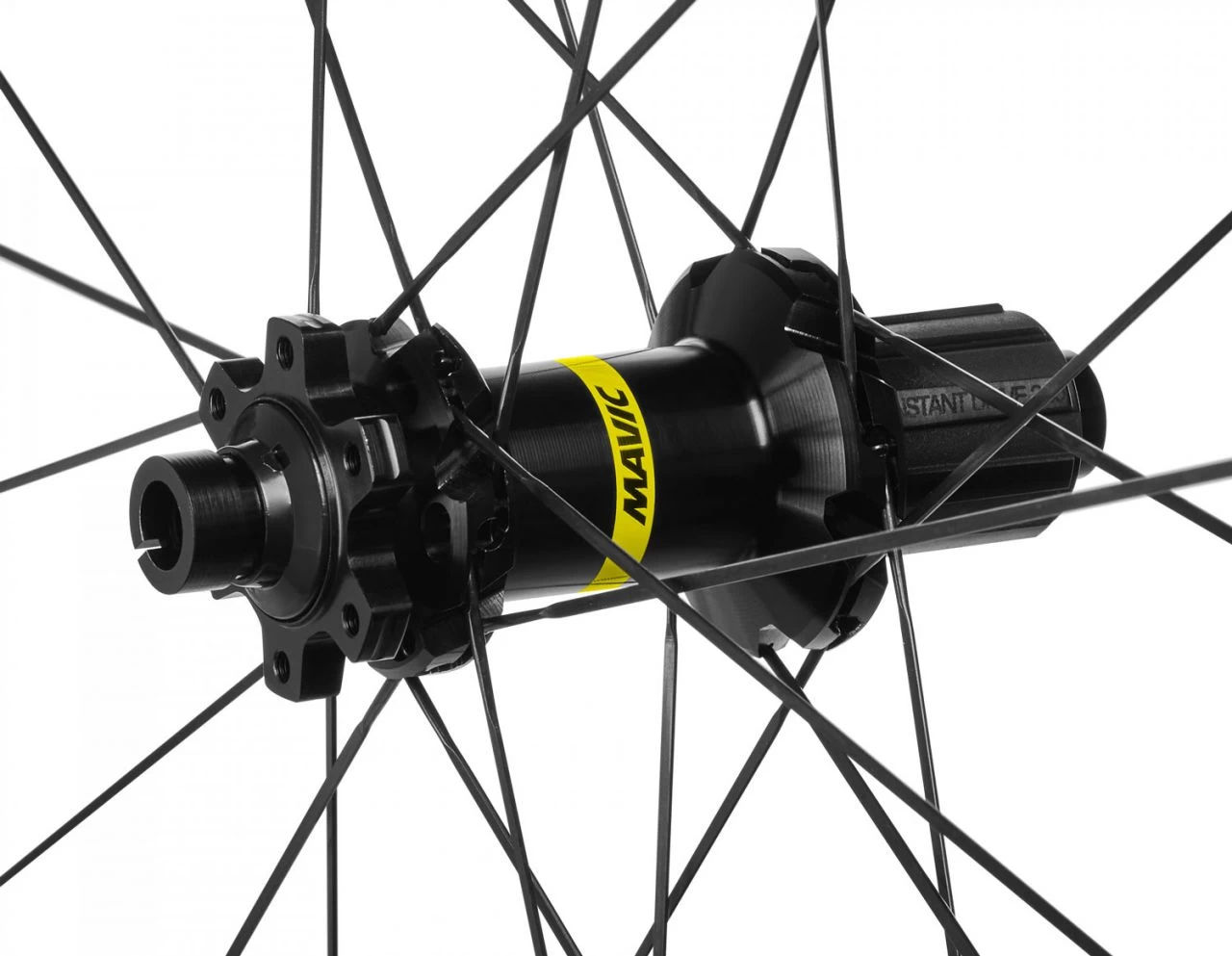

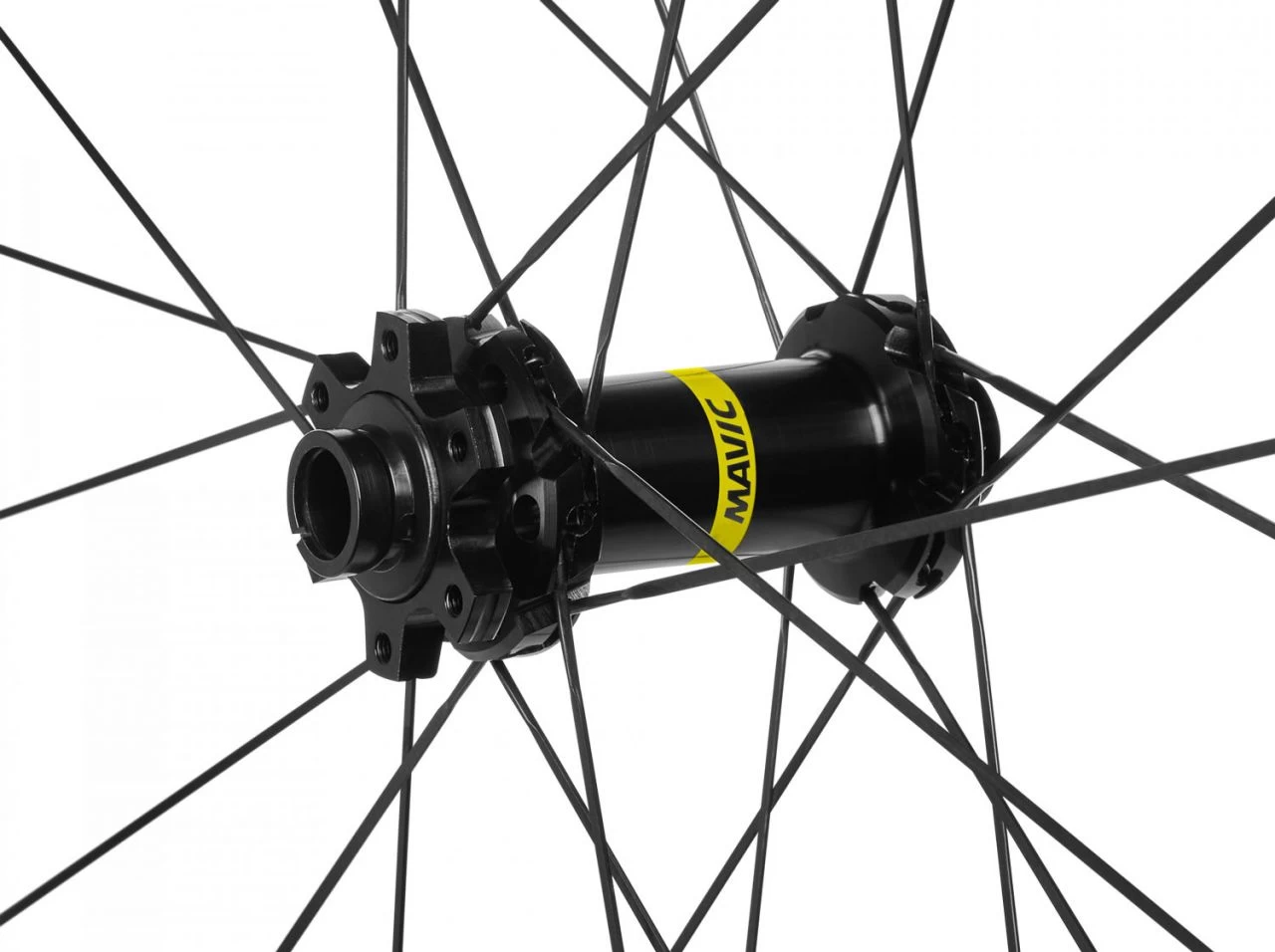

The Infinity lighter hub design optimizes lateral stiffness and spokes tension. Mavic Instant Drive 360 freewheel with a double ratchet system provides fast engagement and top-level reliability. The rear hub is compatible with Shimano HG9, Micro Spline and SRAM XD driver bodies. The Crossmax is available with 6-bolt or center lock brake rotors is compatible with a 15×110 front axle and 12×148 rear. The wheel is delivered with valves, replacement spokes and accessories.

---

Features – Mavic Crossmax 27.5″ Boost

• Light and durable: Welded rim construction for: a light and strong rim profile and a a perfectly sealed rim
• Dynamic and agile:  24 double butted spokes Infinity hub platform ID360 double ratchet freewheel​ system
• Tubeless ready technology: A tubeless rim profile and tubeless tape make it easy to ride tubeless tires for more comfort and control

Product features

• Use: MTB / Cross-country

• Model: Crossmax
• Wheel size: 27.5″
• Rim type: Clincher
• Tubeless ready: Yes
• ETRTO: 584 x 25
• Freehub system: Instant Drive 360
• Axle system:
  • front: 15 x 110 mm Boost (Thru Axle)
  • rear: 12 x 148 mm Boost (Thru Axle)
• Bearings: Auto adjust sealed cartridge bearings (QRM Auto)
• Rim inner width: 25 mm
• Valve hole: Presta / SV Ø 6.5 mm
• Spoke type: straight pull, flat, double butted
• Spokes: 24 (2-cross)
• Recommended tyre sizes: 50 mm to 76 mm (2.00″ to 3.00″)
• ASTM Catergory: 3 (for off-road use (“Cross-country”)
• Recommended system weight max: 150 kg (Rider + Bike + Equipment)

Free hub / brake mount (choose variant)

• Shimano HG / 6-Bolt
• SRAM XD / 6-Bolt
• Shimano Micro-Spline / Centerlock

Material

• Rim: Aluminium
• Hub: Aluminum
• Freehub: Steel
• Spoke: Steel
• Nipples: Steel

Color

• black

Weight

• 1680 g (manufacturer information)

---

Scope of delivery

• 1 x Mavic Crossmax 27.5″ wheelset
• 2 x UST valve and accessories
• 2 x Tubeless rim tape
• 4 x Replacement spoke

---

Technologies

UST tubeless technology
Traction and control Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control and comfort whilst reducing inertia and flats.

Instant Drive 360 freewheel technology
The new Instant Drive 360 freewheel system is super light and efficient. A large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.

QRM Auto bearing preload technology
Qualité de Roulements Mavic Auto Our latest innovation. Those cartridge bearings are of course double sealed with C3 internal clearance. Their preload is automatically adjusted to guarantee a perfect spin with no play on the long run.

SUP welding technology
Stronger and smoother joint Soudé Usiné Process. After bending, the rim joint is arc welded. The welded seam is then milled for a smooth finish.
