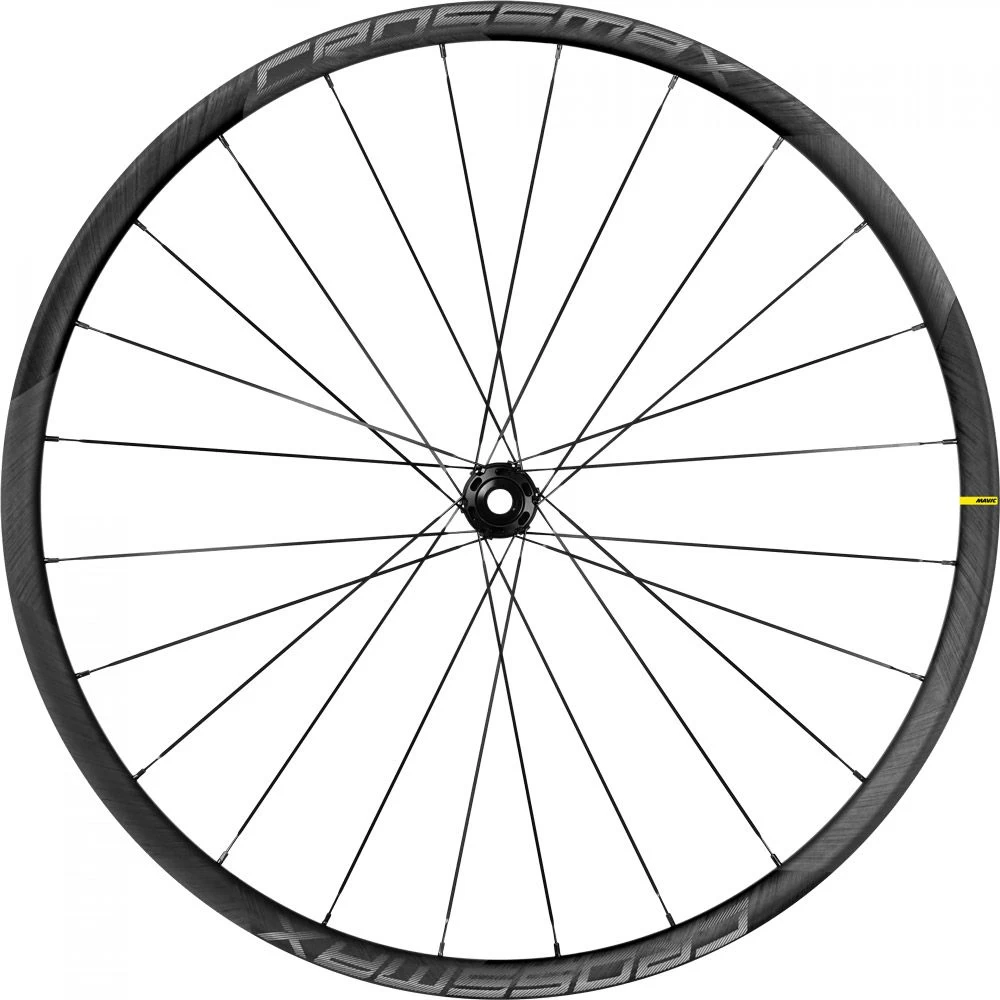

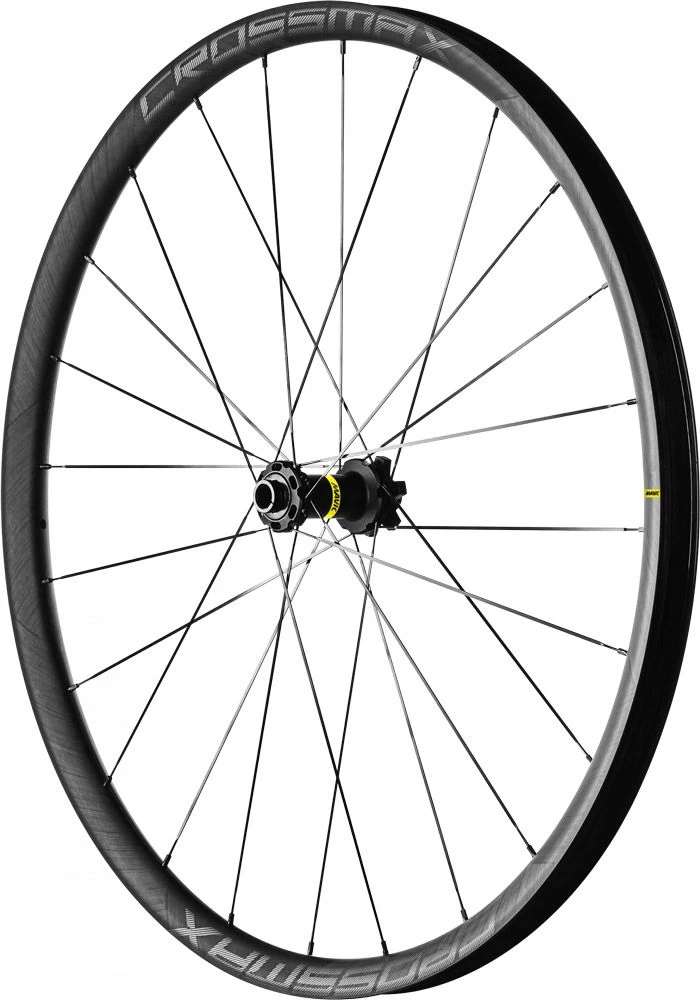

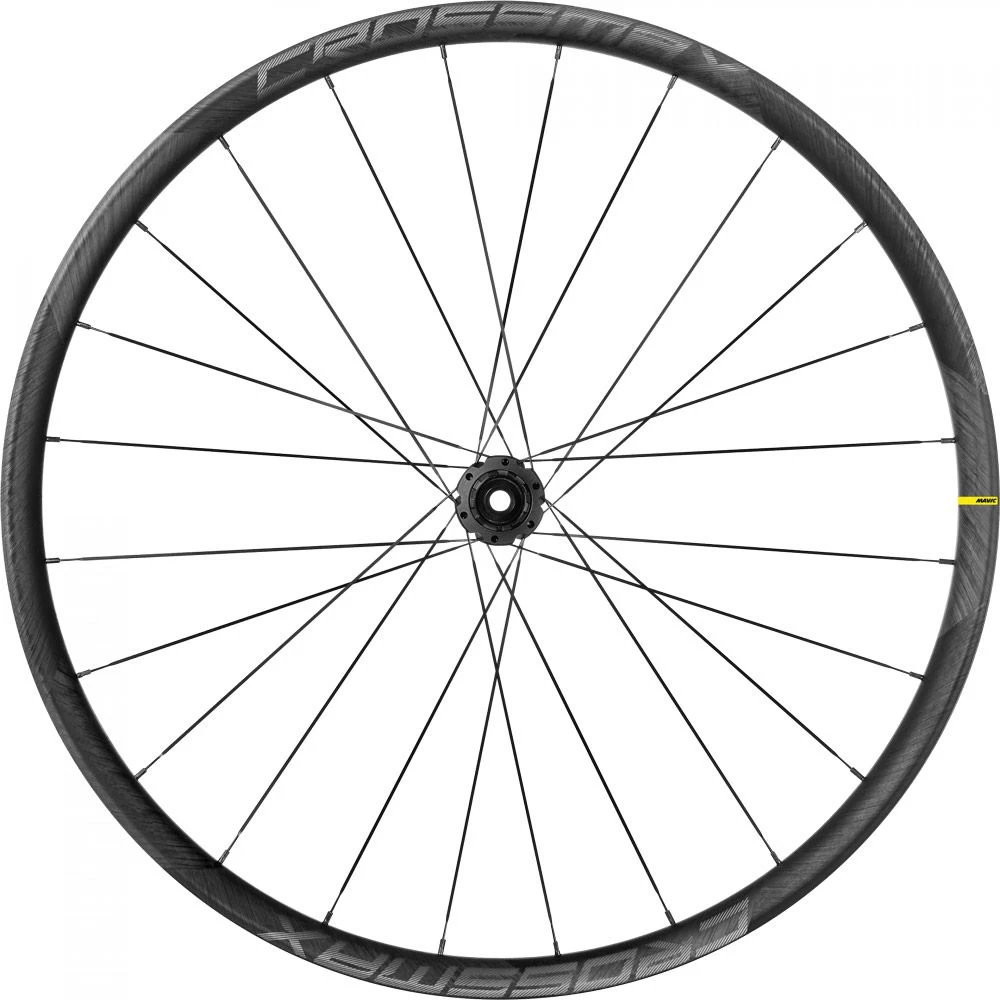

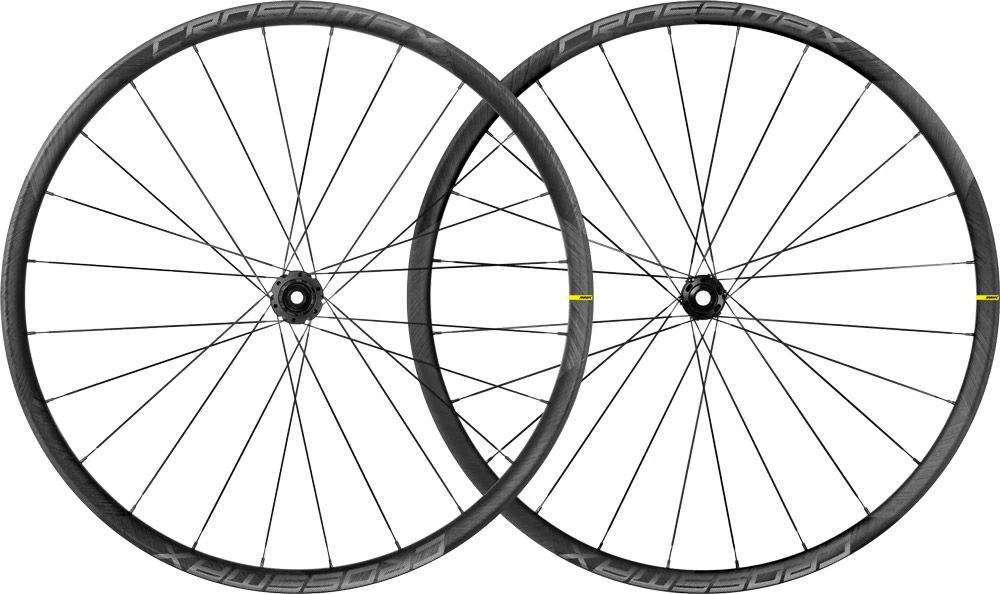

Mavic Crossmax XL R 29″ Boost Wheelset Wheel 29″ Boost Sets | Bike-Discount

With a 30mm reinforced carbon rim, the Mavic Crossmax Carbon XL R is an all-around trail slayer. From steep climbs to rowdy descents, this 29” wheel helps you conquer everything the mountain has to offer.

Reinforced carbon rim: the Crossmax XL R from Mavic

Leg-burning climbs, thrilling descents, jaw-dropping scenery and cold beers at the end of the day. These are the days we dream of, and this is the wheelset to help make it happen. The new Crossmax Carbon XL R has what it takes to be your trusted partner for all your trail explorations. When it comes to carbon MTB wheels, there is such a thing as too stiff. That’s why the Crossmax Carbon XL R rim was developed around a low-profile shape and a specific carbon layup that produces just enough vertical compliance to smooth out the ride quality without compromising the ability to climb and corner with efficiency and precision. The rims have an asymmetric shape and are 30mm wide, designed to perfectly fit and optimize the performance of any modern trail riding tire. We use 24 straight-pull spokes to further dial in the sweet spot between lateral stiffness and vertical compliance. The Infinity hubs feature a stiffer and lighter construction and are enhanced by the ultra-reliable ID360 double ratchet system for fast engagement. Weighing only 1610g, it’s a wheelset that lets you forget the trail and find your flow. It’s available with 6-bolt or center lock disc mounts and is compatible with Shimano HG9, SRAM XD, and Micro Spline freewheel bodies. The Crossmax XL R comes in either 27.5” or 29” and ships with UST tubeless valves, spare spokes and accessories.

---

Features – Mavic Crossmax XL R Carbon 29″ Boost

• Versatille, dynamic trail riding performance: 30mm wide reinforced carbon rim for efficient climbing plus overall strength for technical terrain.
• Enhanced strength and smooth handling on rugged terrain: Low-profile rim shape provides frontal compliance and increased stability in rough sections. 30mm wide rim optimized for lower tire pressure and an ideal fit with modern trail tires from 2.3 to 2.6″. 24 straight-pull spokes for lateral stiffness and vertical compliance.

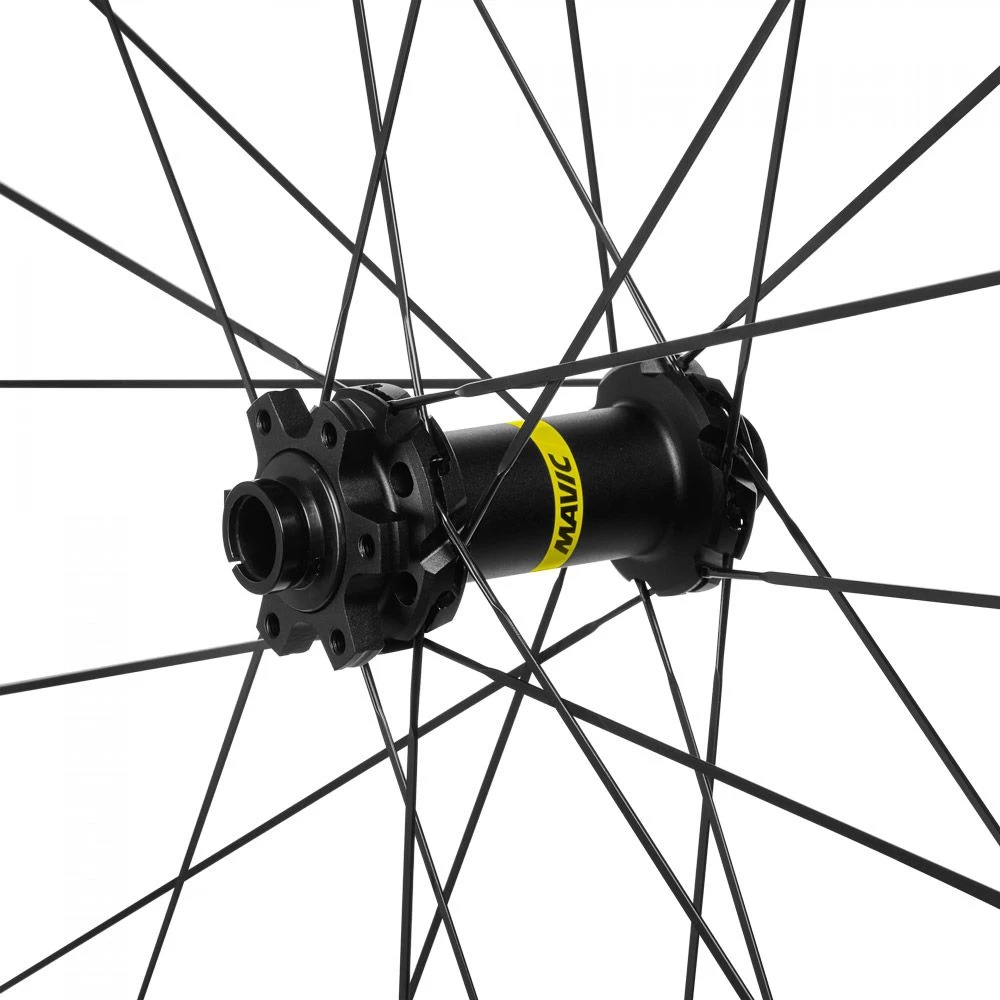

• Efficient power transfer: Lighter, stiffer Infinity hubs with ultra-reliable ID360 dual ratchet freewheel system for instant acceleration

Product features

• Use: MTB / Cross-country

• Model: Crossmax XL R
• Wheel size: 29″
• Rim type: Clincher
• Tubeless ready: Yes
• ETRTO: 622 x 30
• Freehub system: Instant Drive 360
• Axle system:
  • front: 15 x 110 mm Boost (Thru Axle)
  • rear: 12 x 148 mm Boost (Thru Axle)
• Bearings: Auto adjust sealed cartridge bearings (QRM Auto)
• Rim inner width: 30 mm
• Valve hole: Presta / SV Ø 6.5 mm
• Spoke type: straight pull, flat, double butted
• Spokes: 24 (2-cross)
• Recommended tyre sizes: 50 mm to 76 mm (2.00″ to 3.00″)
• ASTM Catergory: 4 (for off-road use (“Enduro/Trail”)
• Recommended system weight max: 150 kg (Rider + Bike + Equipment)

Free hub / brake mount (choose variant)

• Shimano HG / 6-Bolt
• SRAM XD / 6-Bolt
• Shimano Micro-Spline / Centerlock

Material

• Rim: Carbon
• Hub: Aluminum
• Freehub: Steel
• Spoke: Steel
• Nipples: Aluminium

Color

• black

Weight

• 1595 g (manufacturer information)

---

Scope of delivery

• 1 x Mavic Crossmax XL R 29″ Boost Wheelset
• 2 x UST valve and accessories
• 1 x Multifonction adjustment wrench
• 2 x Tubeless rim tape
• 4 x Replacement spoke

---

Technologies

Instant Drive 360 freewheel technology
The new Instant Drive 360 freewheel system is super light and efficient. A large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.

QRM Auto bearing preload technology
Qualité de Roulements Mavic Auto Our latest innovation. Those cartridge bearings are of course double sealed with C3 internal clearance. Their preload is automatically adjusted to guarantee a perfect spin with no play on the long run.
