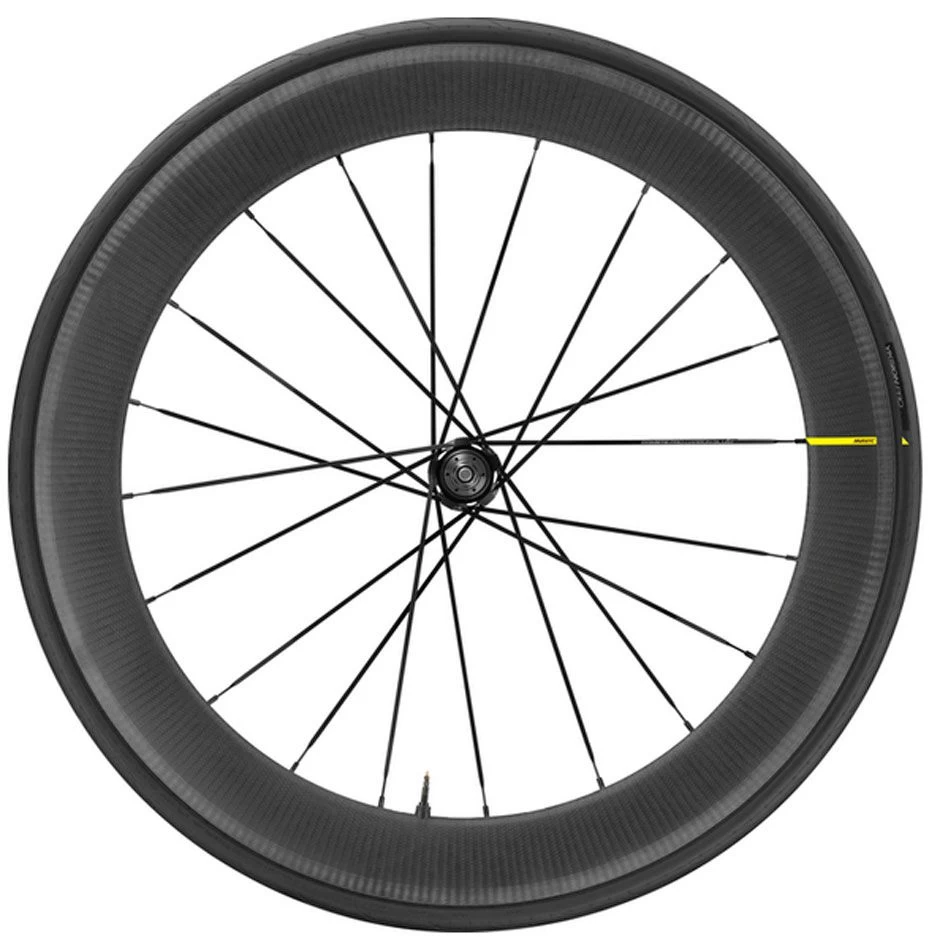

Mavic Ellipse Pro Carbon 65 UST Rear Wheel Wheel For Track | Bike-Discount

The Ellipse Pro Carbon is a high quality track wheel developed together with the top riders of the Red Hook Crit series. It is designed to be aerodynamic, durable and extremely fast for Crit and the track. The special fixed gear hub can accommodate a sprocket on each side, so the gear ratio can be varied. The Ellipse Pro Carbon is classic and modern at the same time: it is designed for rim brakes and tubeless on the track.

---

Features – Mavic Ellipse Pro Carbon 65 UST

• 65mm deep full carbon NACA rim profile
• 26mm wide, optimized for 25mm tires for low drag and high crosswind stability
• 20 flat straight pull spokes, laced 3 times, for high lateral stiffness
• Flat double-butted spokes save weight and improve responsiveness
• No tubes means less friction, better efficiency and grip, a reduced risk of punctures
• UST lets you ride with lower tire pressures for improved grip in the corners

Product features

• Use: Track

• Model: Ellipse Pro Carbon
• Wheel size: 28″
• ETRTO: 622×19
• Rim type: Clincher
• Tubeless: ✔
• Hub axle system: for fixing nuts only (included), M9x1 thread
• Fixed gear system: flip-flop hub (one cog possible on each hub side), Cog thread 1,37x24TPI, Lock ring thread left M33x1
• Bearings: Adjustable sealed cartridge bearings (QRM+)
• Rim inner width: 19mm
• Rim height: 65mm
• Spoke type: straight pull, elliptical aero, double butted (patented)
• Spokes: 20 crossed 2
• Brake type: Rim Brake
• Brake track: Carbon with iTgMAX technology
• Recommended tyre sizes: 25mm to 32mm
• Tyre: 11 Storm compound technology
• Valve hole: Presta / SV Ø 6.5mm
• ASTM Catergory: 1 (road only)
• Recommended system weight max: 120kg (Rider + Bike + Equipment)

Material

• Rim: 3K Carbon
• Hub: Aluminum
• Axle: Steel
• Spoke: Steel
• Nipples: Steel

Color

• black

Weight (manufacturer information)

• 950g

---

Scope of delivery

• 1 Mavic Ellipse Pro Carbon 65 UST Rear Wheel
• 1 Track tyre
• 1 Mavic tyre sealant
• 1 Tyre sealant syringe
• 1 UST valve and accessories
• 1 Pre-installed tubeless rim tape
• 1 Multifunction adjustment wrench

---

Technologies

UST Tubeless Technology
Traction, control and lightweight. The UST concept improves traction, control and comfort while reducing inertia and flats. Tubeless constructions are lighter, reduce the rolling resistance and provides more comfort.

QRM (Qualité de Roulements Mavic)
Qualité de Roulements Mavic. Mavic only uses high quality sealed cartridge bearings. On QRM wheels, they feature double sealing (2RS or LLU) together with tight C3 internal clearance.
