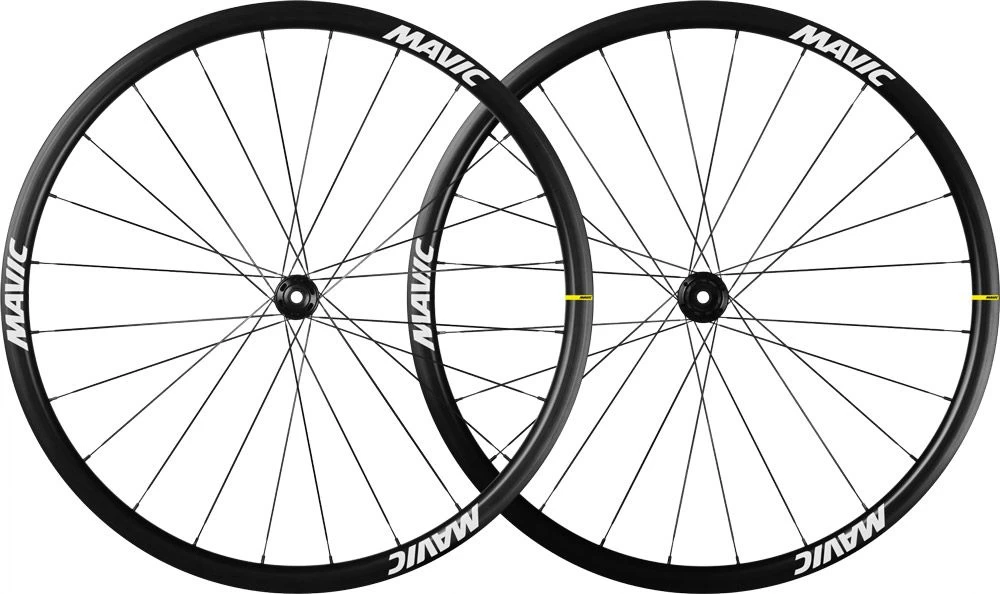

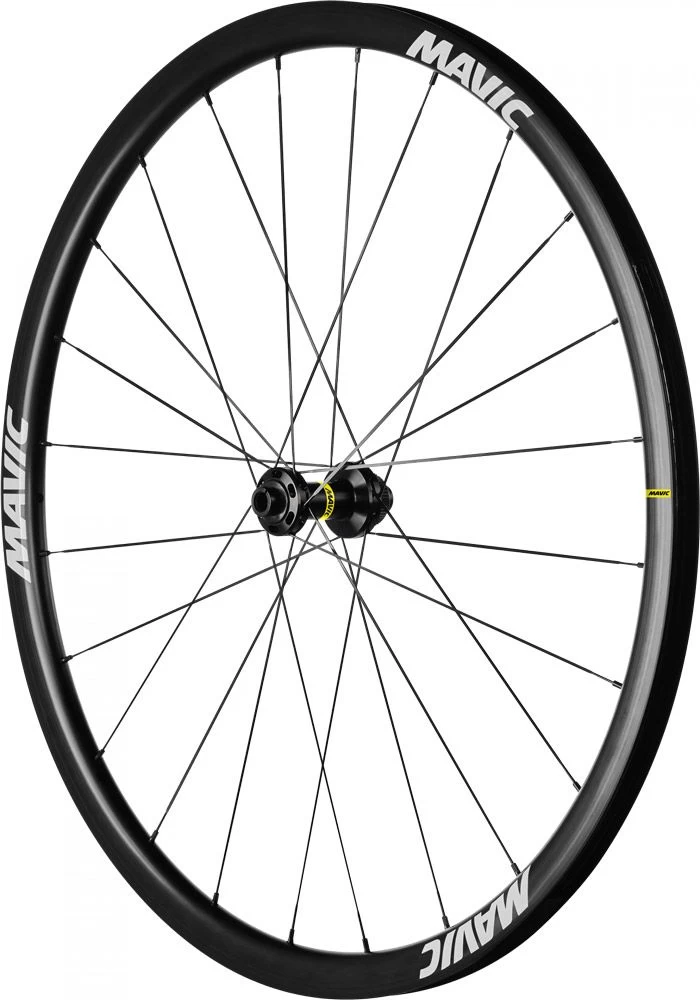

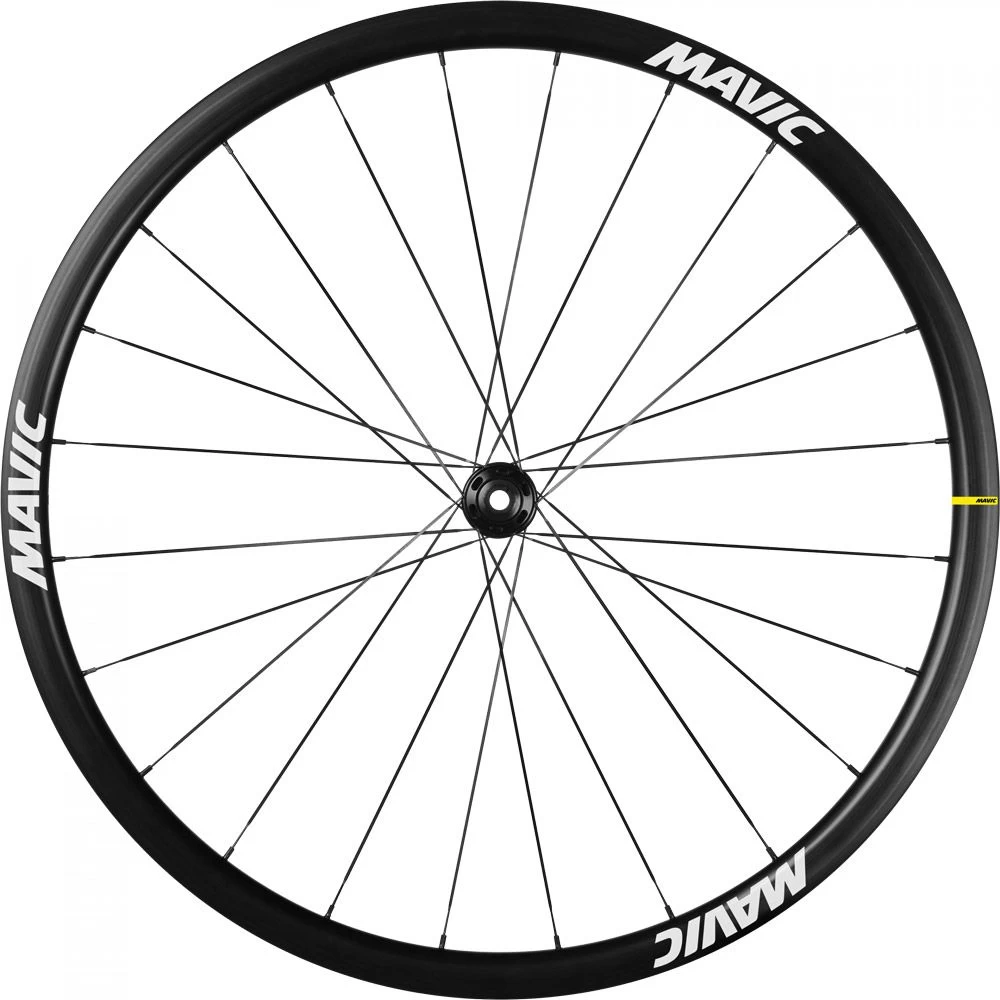

Mavic Ksyrium 30 Disc Wheelset Road Bike Wheel Sets Disc | Bike-Discount

Ksyrium 30 Disc offers a brand new 30mm high tubeless friendly rim that brings lightweight and dynamic to the point. Double-thick spokes and the latest Infinity hubs. The result: Mavic-typical quality and top performance at an affordable price.

Light but strong: the Ksyrium 30 Disc from Mavic

The new Ksyrium 30 Disc is a perfect entry point into high-level race performance. This all-new UST Road Tubeless system delivers a smoother ride and improved puncture resistance while retaining a lightweight feel for climbing and accelerating. By removing the tube, we’ve also removed friction, so there’s less rolling resistance, which means it requires less energy to reach higher speeds. The 30mm deep rim optimizes aero performance and improves stability in crosswinds. The alloy rim benefits from our unrivaled experience creating light yet strong rim extrusions. Mavic do this by carefully tuning the thickness of the rim wall to hit the sweet spot between stiffness, strength and weight. The bladed straight pull spokes are laced to the high-end Infinity hub platforms : optimal spoke tension balance is a guarantee for perfect stiffness and great durability, with only 1 spokes length for both wheels to worry about. The Instant Drive 360 ratchet freewheel system is quick to engage and offers low friction. This hub easily converts from Shimano/SRAM to Campagnolo or XD cassette and is compatible with Center Lock disc rotors.

---

Features – Mavic Ksyrium 30 Disc Center-Lock

• Light and aero rim: 30mm deep profile, Optimized rim wall thickness, Welded
• Dynamic and agile: Double butted spokes, Infinity hub design, ID360 freewheel​
• Refined tubeless technology helps you roll faster and smoother and is easy to set up and maintain: Optimized UST rim bed shape, Durable and perfectly airtight tape system

Product features

• Use: Road

• Model: Ksyrium 30
• Wheel size: 28″
• ETRTO: 622×19
• Rim type: Clincher
• Tubeless: ✔

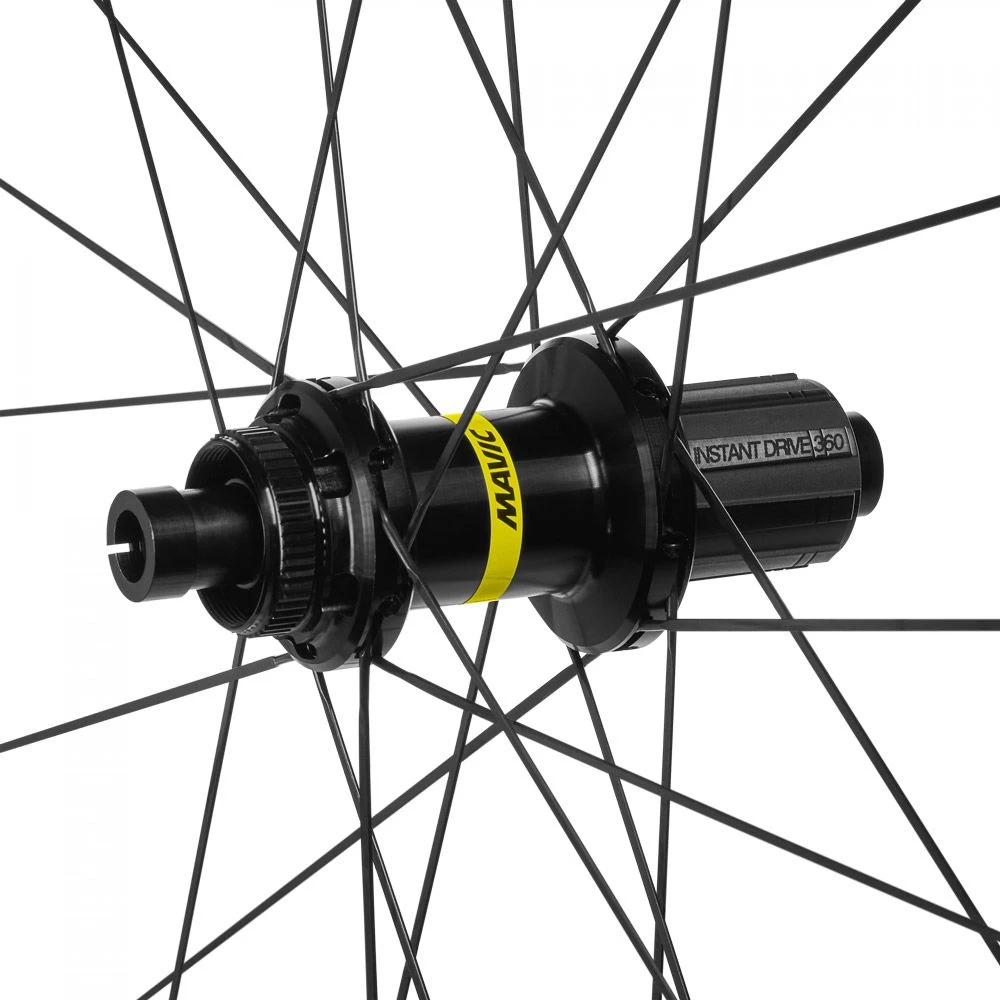

• Freehub system: Instant Drive 360
• Bearings: Auto adjust sealed cartridge bearings (QRM Auto)
• Rim inner width: 19 mm
• Hub axle system:
  • Front: 12 x 100 mm thru axle
  • Rear: 12 x 142 mm thru axle
• Spoke type: straight pull, flat, double butted
• Spokes: 24 crossed 2, contectless
• Brake type: Disc
• Brake system: Center-Lock
• Recommended tyre sizes: 25 mm to 32 mm
• Valve hole: Presta / SV Ø 6.5 mm
• ASTM Catergory: 2 – road and offroad with jumps less than 15cm
• Recommended system weight max: 120 kg (Rider + Bike + Equipment)

Freehub (choose variant)

• Shimano HG
• Sram XDR

Material

• Rim: Maxtal Aluminum
• Hub: Aluminum
• Freehub: Steel
• Spoke: Steel
• Nipples: Fore integrated Aluminum

Color

• black

Weight (manufacturer information)

• Set: 1790 g

---

Scope of delivery

• 1 Mavic Ksyrium 30 DCL Wheelset
• 2 Adapter Quick Release
• 2 UST valves and accessories
• 2 Tubeless Tape

---

Technologies

Maxtal
Lightweight and strong. The exclusively for Mavic manufactured aluminum alloy offers a higher strength to weight ratio than conventional 6106 aluminum.

SUP welding technology
Stronger and smoother joint Soudé Usiné Process. After bending, the rim joint is arc welded. The welded seam is then milled for a smooth finish.

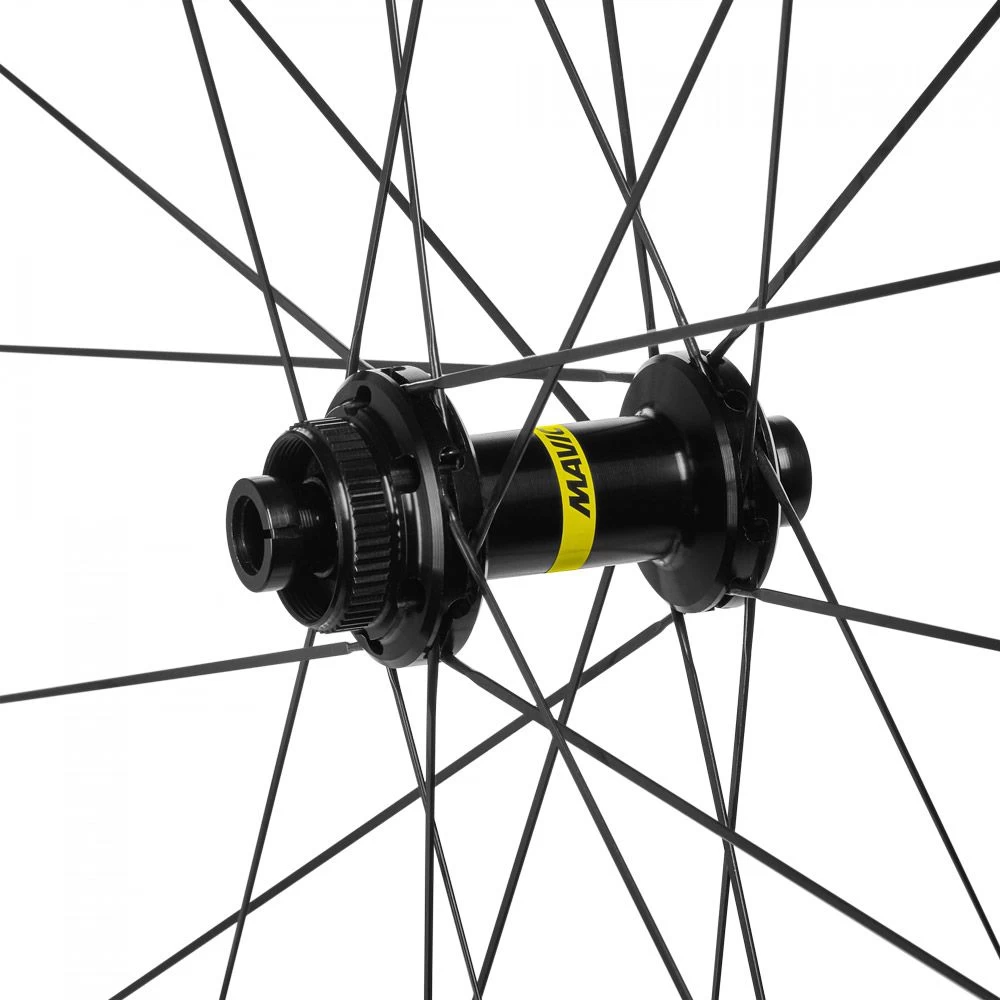

Infinity Hub
Equipped with the all-new Infinity Hub that harnesses a trinity of hallmarks that enhance power transfer, durability, and compatibility. Easily serviceable without the need for specialized tools, the Instant Drive 360 freewheel technology ensures quick engagement along with high rigidity and durability and offers automatic bearing preload adjustment (QRM Auto). Designed for compatibility and ease of use, the Infinity Hub can be converted to all major freewheel drive options and axle dimensions.

UST Tubeless Technology
Traction, control and lightweight. The UST concept improves traction, control and comfort while reducing inertia and flats. Tubeless constructions are lighter, reduce the rolling resistance and provides more comfort.

QRM (Qualité de Roulements Mavic)
Qualité de Roulements Mavic. Mavic only uses high quality sealed cartridge bearings. On QRM wheels, they feature double sealing (2RS or LLU) together with tight C3 internal clearance.
